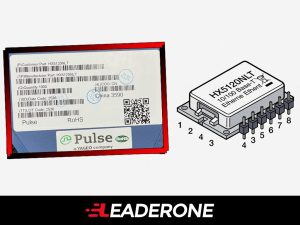

HX5120NLT Ethernet magnetics module showing compact surface-mount design for 10/100Base-T network applications.
The HX5120NLT is an Ethernet magnetic component designed for stable and efficient data transmission in wired network systems. It is commonly used in 10/100Base-T Ethernet applications, where signal integrity and noise suppression are critical. With its compact surface-mount design, HX5120NLT fits well into modern, space-constrained PCB layouts.
Key Features of HX5120NLT Ethernet Magnetics
The HX5120NLT Ethernet magnetics integrates isolation transformers and common-mode noise suppression in a single package. This design helps reduce electromagnetic interference while maintaining reliable signal quality. It also supports standard Ethernet requirements, making system integration simpler and more consistent.
HX5120NLT is built for automated assembly and high-volume production. Its surface-mount package improves manufacturing efficiency and supports stable soldering during reflow processes. These features make it suitable for cost-sensitive networking equipment.
Applications of HX5120NLT in Networking Devices
Engineers often select the HX5120NLT for Ethernet switches, routers, IP cameras, and industrial communication devices. It is also widely used in embedded systems that require dependable wired connectivity. The component helps ensure clean data transmission in environments where electrical noise is present.
In industrial and commercial networks, Ethernet magnetics like HX5120NLT play an essential role. They provide galvanic isolation between the PHY and the network cable, which enhances system safety and long-term reliability.
Why HX5120NLT Remains a Practical Choice
As wired Ethernet continues to be a key communication standard, demand for reliable magnetic components remains strong. The HX5120NLT Ethernet magnetics offers a balanced solution that combines performance, compact size, and manufacturing efficiency. It supports stable network operation without adding unnecessary design complexity.
For designers focused on dependable Ethernet performance, HX5120NLT remains a proven and practical option across many networking applications.
